The Future of Nanofibers: Understanding Electrospinning Technology
In the realm of nanotechnology, one method has captured significant attention for its simplicity, versatility, and effectiveness; electrospinning. This innovative process allows for the production of ultrafine fibers, with diameters ranging from a few nanometers to a few micrometers, which have a wide array of applications in fields such as biomedical engineering, filtration, energy storage, and more. Let’s dive into the fascinating world of electrospinning, exploring the technology itself and the machines that make it possible.
What is Electrospinning?
Electrospinning is a fiber production method that uses electrical forces to draw charged threads of polymer solutions or melts to a collector.
The core principle of electrospinning is the application of a high voltage to a polymer solution, causing it to eject a fine jet of liquid. As this jet travels toward a grounded collector, the solvent evaporates, leaving behind a solid fiber. The result is a nonwoven mat of fibers with incredibly small diameters.

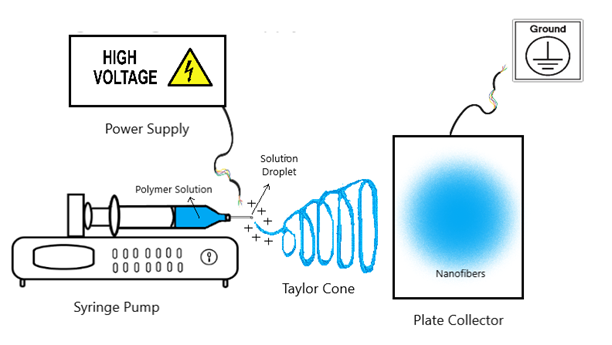

How Electrospinning Works: A Step-by-Step Guide
- Preparation of the Polymer Solution:
– The process begins with the preparation of a polymer solution or melt. The polymer must be soluble in a suitable solvent and have the right viscosity to form a continuous fiber.
- Application of High Voltage:
– The solution is loaded into a syringe with a needle, and a high voltage (usually between 5 kV and 30 kV) is applied. This creates an electric field between the needle (anode) and the collector (cathode).
- Formation of the Taylor Cone:
– As the voltage increases, the droplet at the tip of the needle deforms into a conical shape known as the Taylor cone. When the electric field strength overcomes the surface tension of the droplet, a fine jet of the polymer solution is ejected.
- Fiber Formation:
– The polymer jet undergoes a series of stretching, thinning, and solvent evaporation as it travels through the electric field. This process results in the formation of solid, ultrafine fibers.
- Collection of Nanofibers:
– Finally, the fibers are collected on a grounded collector, often a rotating drum or a flat plate, forming a nonwoven fabric.
Electrospinning Machines: The Heart of the Technology
Electrospinning machines are at the heart of this process, with various designs tailored to specific applications. The most common configurations include:
Horizontal Electrospinning Machines:
– In these machines, the polymer solution is ejected horizontally toward the collector. They are particularly suited for applications requiring aligned fibers, such as tissue engineering scaffolds.
Vertical Electrospinning Machines (Top-to-Bottom or Bottom-to-Up)
Top-to-Bottom Deposition:
The top-to-bottom orientation is when the polymer solution is ejected downward toward a grounded collector positioned below the needle.
This approach has several key benefits:
Gravity Assistance:
Gravity naturally aids in the stretching of the polymer jet, helping to elongate the fibers as they travel toward the collector. This can result in more uniform and continuous fibers.
Ease of Collection:
Collectors can be easily positioned directly beneath the needle, allowing for straightforward fiber collection. Flat plates, rotary drums, or even specialized patterned collectors can be used, depending on the desired fiber arrangement.
Bottom-to-Up Deposition:
The bottom-to-up orientation is a less common but innovative approach where the polymer solution is ejected upward toward a collector placed above the needle. While this setup presents unique challenges, it also offers distinct advantages:
Reduced Fiber Sagging:
In some cases, particularly with very fine fibers, the top-to-bottom method may result in sagging or uneven fiber deposition due to gravity. The bottom-to-up approach can counteract this by having fibers move against gravity, promoting more controlled deposition.
Enhanced Control Over Fiber Alignment:
By carefully adjusting the electric field and other parameters, the bottom-to-up orientation can provide better control over fiber alignment. This is particularly useful in applications requiring highly ordered nanofiber structures, such as in certain types of sensors or electronic devices.
Challenging Conditions:
The main challenge of the bottom-to-up method is maintaining a stable and continuous fiber jet, as gravity opposes the motion. This requires precise control of the polymer solution’s properties and the electrospinning parameters.
Common Applications:
This orientation is widely used for creating random fiber mats, aligned fibers, or patterned structures in applications like filtration, tissue engineering, and composites.
Rotary Drum Collectors:
– Rotary drum collectors are essential for producing aligned or patterned nanofiber structures. As the fibers are deposited on the rotating drum, the motion induces alignment, creating fabrics with unique properties.
Multi-Needle Electrospinning:
– To scale up production, multi-needle electrospinning setups are used. These machines can eject multiple jets simultaneously, significantly increasing the output of nanofibers.
Applications of Electrospun Nanofibers:
The versatility of electrospun nanofibers has led to their application in a broad range of industries:
– Biomedical Applications:
– Electrospun nanofibers are used in tissue engineering, wound dressings, and drug delivery systems due to their high surface area, porosity, and the ability to mimic the extracellular matrix.
– Filtration:
– Nanofibers are ideal for air and liquid filtration due to their small pore size, which can capture even the finest particles.
– Energy Storage:
– In the energy sector, electrospun nanofibers are used in batteries and supercapacitors, where their high surface area improves energy storage capacity and charge-discharge efficiency.
– Textiles:
– The textile industry is exploring electrospun fibers for creating advanced fabrics with properties like breathability, water resistance, and antimicrobial activity.
Future Directions in Electrospinning Technology
As research and development in electrospinning continue, we can expect to see even more innovations. Current trends include the development of coaxial electrospinning for producing core-shell fibers, needleless electrospinning for higher throughput, and 3D electrospinning for creating more complex structures.
Moreover, there is ongoing work to integrate smart materials into electrospinning processes, leading to nanofibers with responsive properties—opening up new possibilities in sensors, actuators, and beyond.
Conclusion
Electrospinning stands at the forefront of nanotechnology, offering a straightforward yet powerful method for creating nanofibers with exceptional properties. The flexibility in designing electrospinning machines to cater to various needs further enhances the technology’s appeal across different industries. As innovations continue to emerge, electrospinning will undoubtedly play a crucial role in shaping the future of materials science.
Whether you’re a researcher exploring new frontiers or an industry professional looking to integrate cutting-edge materials into your products, electrospinning is a technology worth watching.
